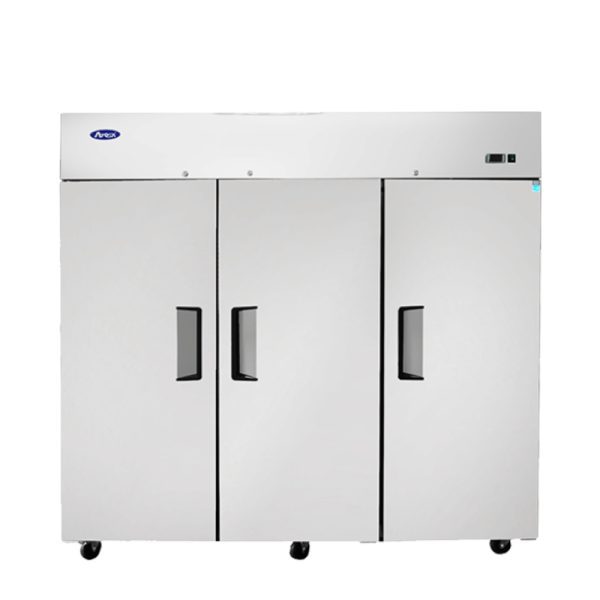

Atosa MBF8003GR three-door reach-in freezer, doors closed

Atosa MBF8003GR 3-Door Top Mount Reach-In Freezer

$5,983.00
Skip to product information
Atosa MBF8003GR three-door reach-in freezer, doors closed
Atosa MBF8003GR 3-Door Top Mount Reach-In Freezer

Atosa MBF8003GR 3-Door Top Mount Reach-In Freezer

$5,983.00

The Atosa MBF8003GR is a three-section reach-in freezer with 64.9 cu. ft. of storage, three solid doors and nine pre-installed shelves.

Its top-mounted refrigeration system uses R290 refrigerant and maintains cabinet temperatures from -8°F to 0°F. Stainless steel construction inside and out, electronic temperature control and LED lighting support everyday commercial-kitchen use.

Electrical: 208–230/115V / 60 Hz / 1 phase, 6.2A. Atosa specifies a NEMA L14-20R receptacle, rated 20A, 125/250V. This is not a standard 115V-only connection.
Unit dimensions: 77.75″ W × 31.75″ D × 81.38″ H, including casters.

Availability: Available to order. Contact us to confirm current availability and lead time.

Documents

↓ Spec Sheet

The Atosa MBF8003GR is a three-section, three-door reach-in freezer with 64.9 cu. ft. of storage and nine pre-installed epoxy-coated shelves. Its top-mounted, 1 HP refrigeration system uses R290 refrigerant and maintains cabinet temperatures from -8°F to 0°F.

Stainless steel construction inside and out, an electronic temperature controller and down-duct refrigeration provide a practical frozen-storage cabinet for commercial kitchens. LED lighting illuminates the interior. Self-closing doors with a stay-open feature have recessed handles, locks and magnetic gaskets.

Key Features

  • Three solid hinged doors; three sections; 64.9 cu. ft. capacity
  • Nine pre-installed epoxy-coated shelves and 4-inch casters
  • Top-mounted 1 HP compressor with R290 refrigerant
  • -8°F to 0°F cabinet temperature range; electronic temperature control
  • Stainless steel exterior and interior; down-duct air distribution; LED lighting
  • Self-closing, stay-open doors with locks, recessed handles and magnetic gaskets
  • 208–230/115V, 60 Hz, single phase; rated current 6.2A
  • Atosa specifies a NEMA L14-20R receptacle, rated 20A, 125/250V. This is not a standard 115V-only connection.
  • Unit dimensions: 77.75 in. W × 31.75 in. D × 81.38 in. H, including casters
  • Net unit weight: 489 lb; shipping gross weight: 569 lb
  • ETL listed; conforms to UL 471 and certified to CSA C22.2 No. 120
  • 3-year parts and labour warranty; 5-year compressor-part warranty, subject to manufacturer terms

Extended warranties and additional shelves are available separately. Available to order; contact us to confirm current availability, lead time and any installation requirements. Review the manufacturer specification sheet and confirm the required electrical supply before ordering.

Configuration
Compressor Location Top Mounted
Door Style Hinged - Solid
Number of Sections 3
Physical Dimensions
Width 77.75 in
Depth 31.75 in
Height 81.38 in
Net Weight 489 lb
Electrical
Voltage 208-230/115 V
Hertz 60
Phase 1
NEMA Plug L14-20R (receptacle)
